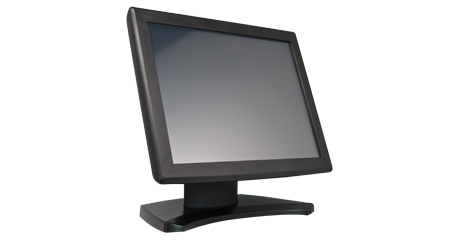

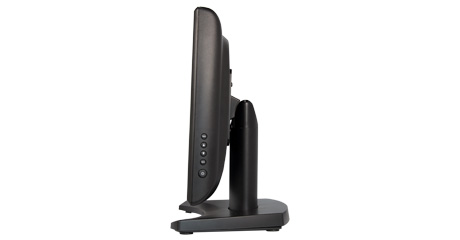

Touch Screen TAP-17-2RT-E

17” Resistive Dual Ser/USB Touch Screen

  • Dual Control

Specifications

  • Touch: 5 Wire Resistive Anti-Glare (Optional SAW Available)
  • Interface: USB A-B and RS232
  • Display: VGA 640x480, 800x600, XGA 1024x768(60/70/75hz) Resolution: 1280(H) x 1024(V)
  • Brightness: 250 Nits
  • Contrast: 1000:1
  • Viewing Angle: -75/+75degree (H), -60/+60degree (V)
  • Response Time: 5ms
  • Signal Input: Video/Analog Signal, Signal Sync TTL
  • OSD: Control Brightness, contrast, auto, color, user color etc (OSD on Right Side)
  • Power Supply: 12V DC 1.5A
  • Power: <=30W
  • Attachment Signal Line Power Adaptor
  • Operation Condition: Temp 0 degree to 40 degree 20-80% Humidity
  • Storage Condition: Temp –20 degree to 60 degree 10-90% Humidity
  • Dimension (LxWxH) 360mm x60mm x335mm (Includes Stand)
  • Color: Black
